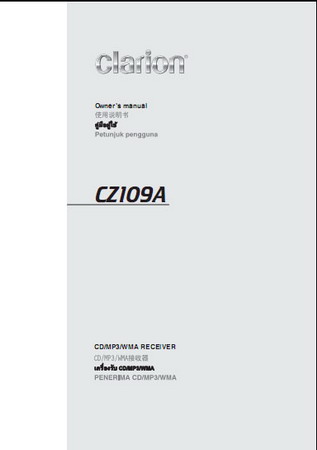

PDF说明书 |
交易记录 |
用户评价 |
|
|
出众的外观和可靠的性能，让您的日常行车更有活力

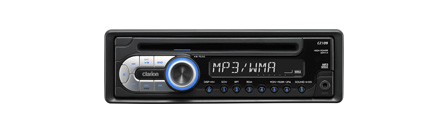

CZ109A 的特点
|
|
|
| TUNER SECTION |
| Frequency bands |
|
| FM: (MHz) 0.05MHz steps |
87.0 to 108 |
| MW: (kHz) 9 kHz steps |
531 to 1,629 |
| LW: (kHz) 3 kHz steps |
153 to 279 |
| FM usable sensitivity (dBf) |
9 |
| FM 50 dB quieting sensitivity (dBf) |
15 |
| FM alternate channel selectivity (dBf) |
70 |
| FM stereo separation @1 kHz (dB) |
35 |
| FM stereo freq. resp. @ ±3 dB (Hz) |
30 to 15,000 |
| CD SECTION |
| Wow/Flutter (WRMS) |
Below measureble limits |
| S/N ratio (dB) |
90 |
| Frequency response (Hz) |
5 to 20,000 |
| Dynamic range (dB) |
85 |
| Harmonic distortion (%) |
0.01 |
| AUDIO SECTION |
| Power output (+B = 14.4 V) |
4 × 25W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 50 × 155 |
| Remote control (W × H × D), mm |
OP (44 × 113 × 11) |
| Weight (kg) |
1.15 |
| Power consumption: less than |
15 A |
| Speaker impedance |
4Ω (4Ω to 8Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
