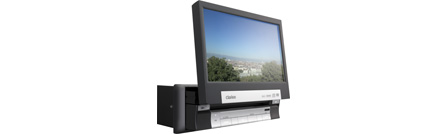

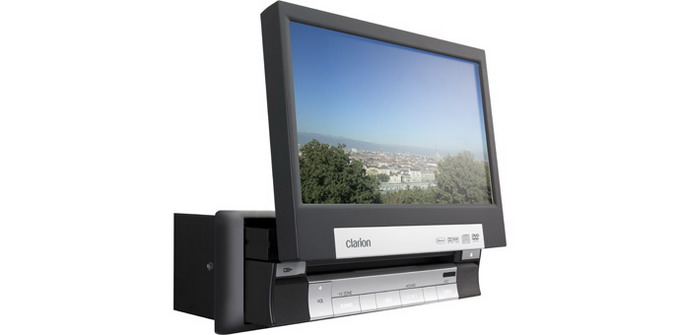

| 规格: DVD多媒体工作站, 配带7英寸触控屏幕连控 |
 |
| 售价: RMB￥5,600.00 元 |
|
|
| |
|
产品概述 |
功能规格 |
实物照片 |
产品视频 |
PDF说明书 |
交易记录 |
用户评价 |
|
|
- 可对应MP3/WMA/iTunes®AAC格式文件(只限于 USB连接), 并可显示ID3标签内容
- 可播放所有版本的DivX®视频内容(包括DivX®6)，以标准再生模式播放DivX®媒体文件
- AUX输入可对应Bluetooth®(蓝牙) 音频/手机传输器BLT370
|
|
|
| MONITOR SECTION |
| Screen size (W × H), mm |
154.0 × 87.0 (7 inch) |
| Display type |
Transparent-type TN liquid crystal display |
| Drive principle |
TFT active matrix display |
| Number of pixels |
336,960 |
| VRC video input |
1.0 ±0.2 Vp-p(input impedance 75 Ω) |
| VRC audio input |
2.0 V,1.3 V,0.65V |
| TUNER SECTION |
| Frequency bands |
|
| FM: (MHz) 0.05 MHz steps |
87.5 to 108 |
| AM: (kHz) 9 kHz steps |
531 to 1,602 |
| FM usable sensitivity (dBf) |
9 |
| FM stereo separation @ 1 kHz (dB) |
30 |
| FM Stereo freq. resp. @ ± 3 dB (Hz) |
30 to 15,000 |
| DVD SECTION |
| Useable discs |
DVD video/DVD±R/RW |
| Frequency response (Hz) |
20 to 20,000 (48 kHz)(+1 dB,-3 dB) |
| CD SECTION |
| Frequency response (Hz) |
20 to 20,000(+1 dB,-3 dB) |
| AUDIO SECTION |
| Power output |
4 × 25 W |
| GENERAL |
| Dimensions (W × H × D), mm |
178 × 50 × 160 |
| Weight (kg) |
2.4 |
| Power consumption |
4.0 A (at 1 W) |
| Power requirement |
14.4 V DC(10.8 ~ 15.6 V) |
| Speaker impedance |
4Ω(4Ω to 8Ω allowable) |
|
|
|
|
|
|
|
|
|
|
|
