多伦多 420 BT(Toronto 420 BT)
BLAUPUNKT

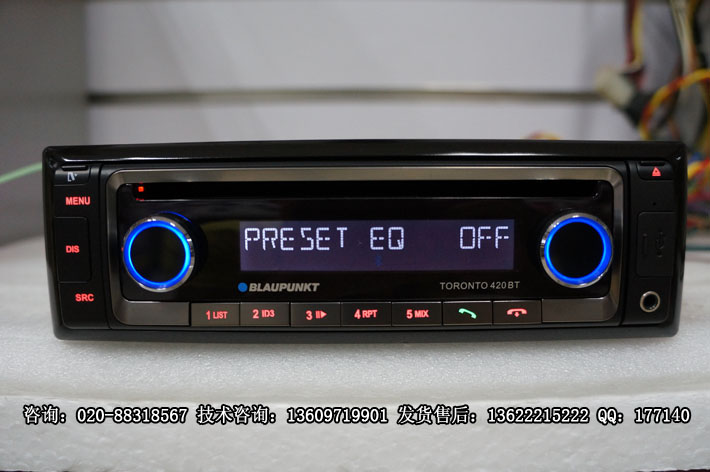

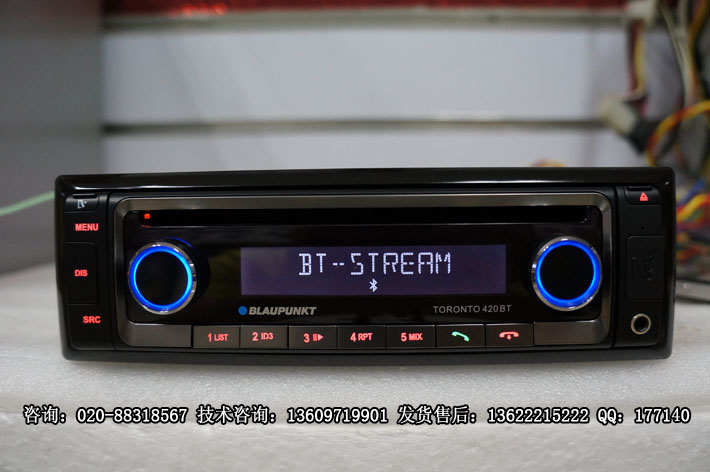

Toronto 420 BT
Introducing a device of many talents.
Key Functions:
Bluetooth
Supported version: Bluetooth 2.0 with EDR
Supported profiles: HFP (hands-free phone calls), PBAP (phone book access profile) with up to 1.000 entries, A2DP (audio streaming)
Microphone: Built-in + rear connector
Auto connect & talk (if radio OFF with ignition ON)
Data carrier
CD-DA, CD-R, CD-RW
USB
SDHC, SD, MMC
Media player
Twin-encoder concept for fast & comfortable MP3 folder/file browsing and iPod criteria/track search
Various display modes (ID3-tags, play time, …, all Info)
Fast reading of USB/SDHC/SD/MMC media
Playback formats: MP3, WMA
Radio
FM, AM (MW, LW) tuner
Equalizer
Number of bands: 3
Model: Semi-parametric
Amplifier
Max. power: 4 x 50 W
Sinus power at 14,4 V: 4 x 22 W
Display
15 digits plus intuitive status icons
Inputs
2 x USB, front & rear, mass storage device (MSD)
iPod / iPhone direct control via USB
SDHC/SD/MMC card slot (behind release panel)
Front Aux-in with audio mix (music & navigation)
Outputs
Pre-amplifier 4-channel (2 V)
Sub-out (variable gain/frequency)
Panel
Detachable
General
Software update via USB
More Technical Details:
Bluetooth
Supported version: Bluetooth 2.0 with EDR
Supported profiles: HFP, PBAP, A2DP
Pairing (number of devices): 5
Hands-free calling: via micro & radio speakers
Hands-free volume: variable
Microphone: Yes (built-in + rear connector)
Key functions: accept call, reject call, redialling
Phone book access: Yes (download of up to 1.000 entries)
Radio phone book presets: 5
Audio streaming: Yes
Auto connect & talk: Yes (if radio OFF with ignition ON)
Data carrier
CD: CD-DA, CD-R, CD-RW
Type disk-drive: automatic loading
USB-removable storage: USB 2.0
Memory cards: SDHC, SD, MMC
Formatting USB: FAT32, FAT 16
Formatting memory card: FAT 32, FAT 16
Media player
Playback format: MP3, WMA
Title display: ID3-tag (version 2), file , folder
MP3 folder & file browsing: Yes (LIST-key / w/o playback interruption)
MP3 file search: Yes (by name / long press LIST-key)
iPod criteria browsing: Yes (ID3-key / by artists, albums, genres, playlists, audiobooks)
Short cut iPod playlists: Yes (long press ID3-key)
Fast list browsing: Yes (via browsing encoder)
Display modes: Yes (file, artist, album, genre (iPod), song, elapsed time, total time, all)
Display of characters: up to 32
Variable display scrolling: Yes (once / always if >15 digits)
Fast media reading: Yes (from USB/SDHC/SD/MMC)
Mix / Repeat / Scan: Yes / Yes / Yes
Bitrate (kBit/s): 32 – 320
Variable bitrates: Yes
CD player
Shock proof memory: Yes
Frequency response (Hz) -1 dB: 20 – 20.000
Radio
Type of tuner: Codem receiver
Tuner areas: World tuner, switchable via menu (EU/USA/SouthAmerica/Thailand)
Wave bands: FM, AM (MW, LW)
Radio Data System (RDS): Programme Service Name (PS), Alternative Frequency (AF), Regional Programme (REG), Enhanced Other Networks (EON), Program Types (PTY), Traffic Program (TP), Traffic Announcement (TA), Clock Time (CT)
Travelstore: Yes
Station memory: 25
Band Scan / Preset Scan: Yes / Yes
Interference suppression: Yes
Frequency response (Hz) -3 dB: 30 – 15.000
Equalizer
Number of bands: 3
Model: semi-parametric
Type: analogue
X-Bass: Yes
Sound presets: pop, rock, classic
Amplifier
Number of channels: 4
Max. power (Watt): 4 x 50
Sinus power at 14.4 V (Watt): 4 x 22
Display
Type: DOT (1-line)
Digits: 15
Colour: negative black and white
Brightness: adjustable
Clock display: 24 / 12 hrs
Inputs
Antenna (number of): 1 (ISO)
USB (number of, type): 2 (front + rear / standard A-type)
USB (features): mass storage device (MSD)
iPod/iPhone: direct control via USB
Memory cards: SDHC/SD/MMC (behind panel)
Aux-In (number of, type): 1 front (3.5 mm jack)
Aux-In (features): variable gain / Aux naming
Audio mix (music & navigation)
Telephone mute: Yes
Telephone Line-In: Yes (rear)
Remote control (RC10): Yes (via front IR-eye and via ISO)
Back connector for optional hands-free microphone: Yes (2.5 mm jack)
Outputs
Loud speaker (number of): 4
Pre-amplifier: 4-Channel (2 V), cinch
Variable amplifier delay time: Yes
Sub-out: Yes (variable gain/frequency)
General
Twin-encoder concept: Left for volume control & mute, Right exclusively for browsing, phone book, tuner & user menu
Software update: Yes (via USB)
Menu language: English + German
Variable scan time: (4/8/12/16/60 seconds)
Confirmation beep: (on/off)
Front panel: detachable
Panel color: black, dark chrome
Encoder / key illumination: blue / red
Permanent storage after car battery disconnect: Yes
Demo mode: Yes
Demo mode activation: via user menu
Installation location: 1-DIN-slot
Weight (kg): ca. 1.70
Height x Width x Depth (mm): 50 x 178 x 160
Accessories included in delivery
Europe variant
Order number: 1 011 202 420 001
Case for front panel: Yes
Instruction book: Yes (16 languages)
Mounting material: Yes
Antenna adapter: Yes
World variant
Order number: 1 011 202 421 001
Case for front panel: Yes
IR remote control: Yes
Instruction book: Yes (6 languages)
Connector cable power supply: Yes (ISO chamber A)
Connector cable Sub-out: Yes (ISO chamber A, cinch)
Connector cable speakers: Yes (ISO chamber B)
Mounting material: Yes
Antenna adapter: Yes
Subject to technical modification. iPod and iPhone are registered trademarks of Apple Computer, Inc.
中文翻译：
德国蓝宝 型号：多伦多 420 BT(Toronto 420 BT)，这款机超经典古典设计，有点像烧鸡麦景图。
多数专业人士推荐的一款机器！
简要功能：
1、内置蓝牙，支持蓝牙电话，A2DP（音频数据播放），PBAP（电话簿信息读取）
2、麦克风：内置和主机后部外接麦克风。支持自动连接、接听通话。
3、支持CD-DA,CD-R,CD-RW光盘格式
4、USB/SDHC卡/SD卡/MMC卡，快速双解码概念设计，支持MP3(目录/文件形式)，iPod（标准/歌曲形式）顺序浏览和搜索
5、快速读取USB/SDHC卡/SD卡/MMC卡文件，可选播放显示模式（歌曲ID3信息，播放时间，以及所有歌曲信息）
6、支持格式：MP3,WMA
7、收音支持FM,AM(MW,LW)
8、EQ均衡，预设置3段均衡
9、内置最大4X50W功放，实际输出功率4X22W有效值，当14.4伏特电压时
10、显示屏：高精度15位字符显示，直观图标
11、接口：前/后2个USB口，SDHC/SD/MMC卡槽(位于面板后面)，USB直接支持iPod/iPhone,前置AUX(支持音乐和导航混响)
12、前级输出：4声道（2伏电平，电平可调式），单独一路低音输出，也就是三路输出。
13、面板可拆卸
14、可断电记忆设置(电池断开连接)
15、支持USB软件升级
16、配原厂遥控器
关于尺寸：国际标准1DIN位
主机裸重：1.7公斤
厚x宽x深: 50 x 178 x 170 (毫米)
详细参数描述，这里就不翻译了，自己可以贴过去谷歌翻译。
